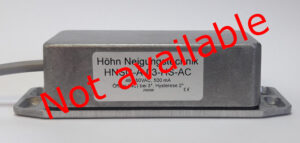

HNSC-A-03-HS-AC
Function: The tilt switch HNSC-A-03-HS-AC monitors tilt deviations from the horizontal (X-axis). If a tilt deviation occurs on the X-axis that is greater than 3° (see tab “Mechanical data”), the switch opens (normally open). The tilt switch will only return to its original operating state when the tilt deviation is eliminated. The hysteresis is 2°.
Measuring range X-axis:
Switching point X-axis:
Accuracy:
Hysteresis:
Measuring principle:
-45°…+45°
3° tilt deviation from the horizontal
+/-1°
2°+/-1°
Mechatronic tilt element
Housing material:
Dimensions:
Mounting:
Tightening torque:
Aluminum
38 x 92.5 x 31 mm
Drilling for M4 screw, see installation sketch
2.5 Nm
Power supply:
Output current:
Switching output:
Connection:
Cable length:
42-250 VAC
500 mA
Normally open (NC)
Cable, 2-core
2m
EU Directives:
.
.
Applied standards:
2014/30/EU EMC Directive
2011/65/EU RoHS Directive
2014/35/EU Low Voltage Directive
EN IEC 60947-5-1:2018
EN IEC 63000:2018
MTTFd:
Service life:
6137 years
20 years / 500,000 switching cycles
The specification of the MTTF / service life value does not constitute binding quality and/or durability commitments; these are merely empirical values without binding character.
These values do not extend or otherwise influence the limitation period for warranty claims.
